Active vs Passive Stylus: Which One Is Better for Drawing?

If you want to use your phone or tablet as a drawing tablet with VirtualTablet, the most important question is not screen size. It is whether your pen is an active stylus or a passive stylus.

Many users search for terms like active pen vs capacitive stylus, does a passive stylus support pressure sensitivity, or can a stylus hover without touching the screen. The short answer is simple:

• Active stylus devices are the better choice for drawing, handwriting, and precise desktop input.
• Passive stylus pens are fine for basic tapping or casual navigation, but they are much more limited.

Quick Answer

An active stylus communicates with dedicated pen hardware in the device. That is why it can support advanced features such as:

• Pressure sensitivity
• Better accuracy
• Palm rejection
• Tilt on supported hardware
• Hover on supported hardware

A passive stylus usually behaves like a finger touching a capacitive screen. It may work for simple touch input, but it does not provide true pressure-sensitive drawing.

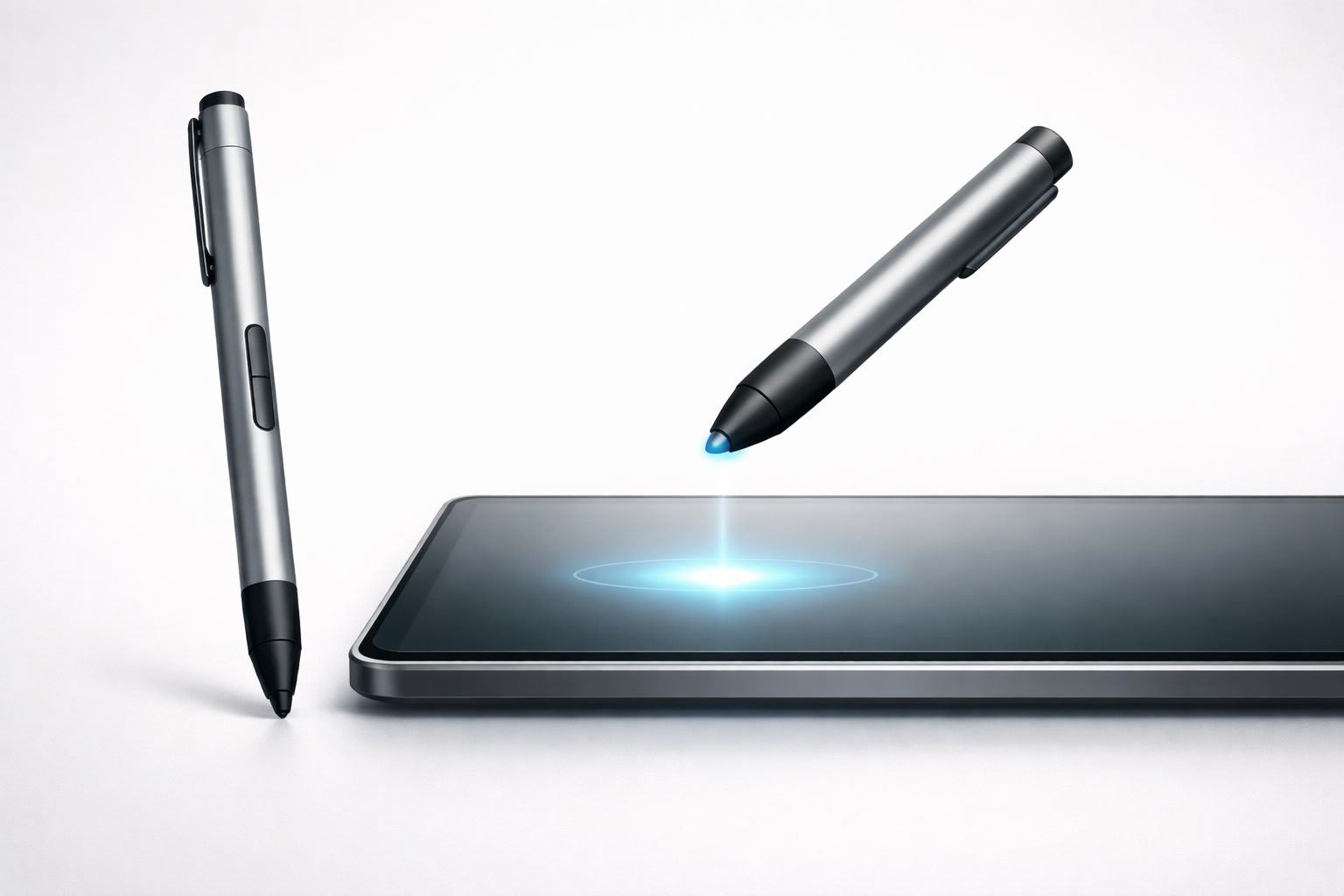

What Is an Active Stylus?

An active stylus is a pen that works with a device’s built-in digitizer system instead of only imitating finger touch.

Common examples include:

• Samsung S Pen
• Apple Pencil
• Microsoft Surface Pen
• Other devices marketed with terms like Active Pen, Digitizer, or M-Pencil

Because the device can identify the pen separately from ordinary touch input, active stylus setups can offer a much more natural drawing experience.

That is what makes active stylus hardware useful for:

• Digital art
• Handwritten notes
• Photo retouching
• Precise cursor control
• Desktop drawing tablet workflows

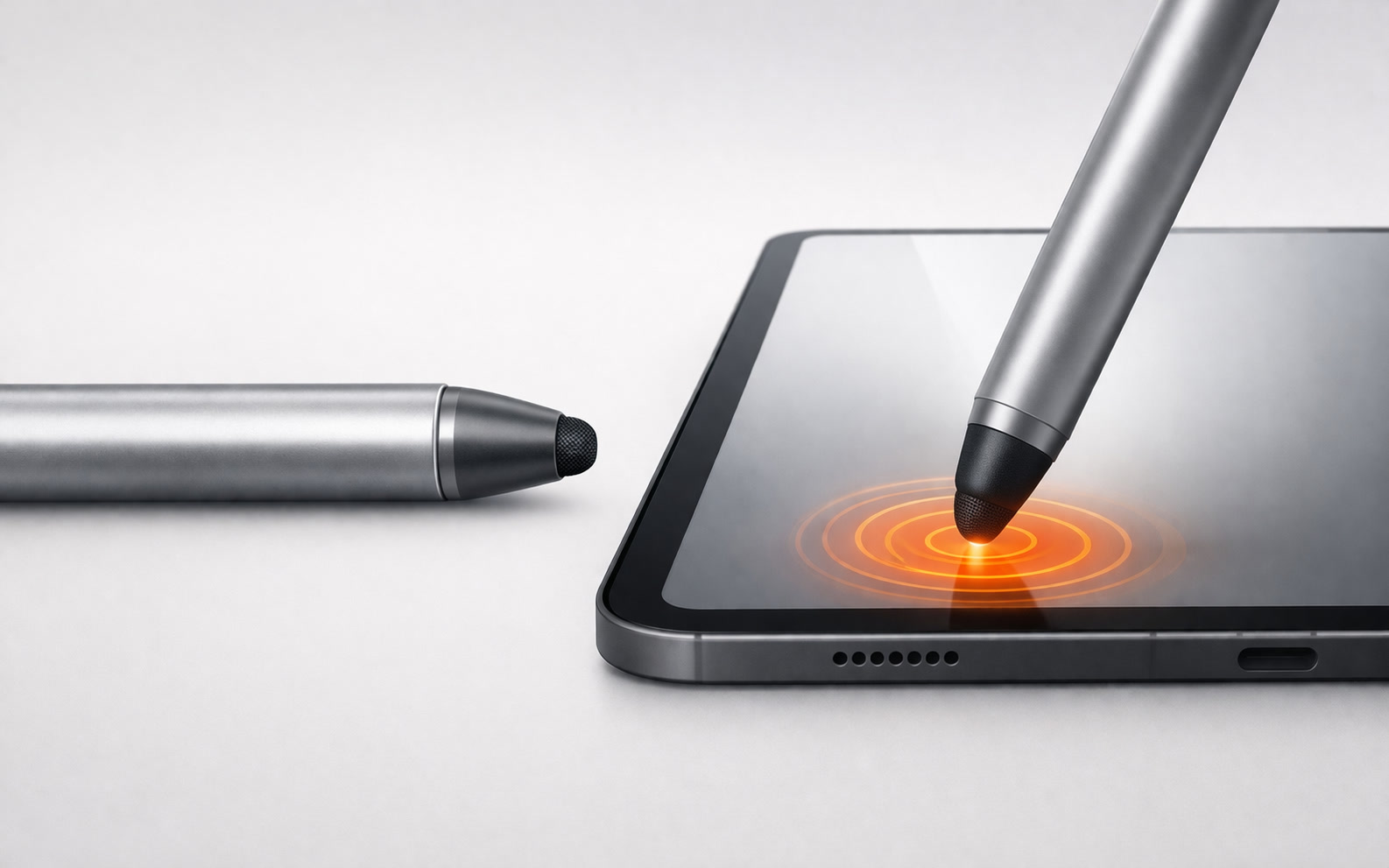

What Is a Passive Stylus?

A passive stylus is usually a simple capacitive stylus. In practical terms, it acts like a more pen-shaped finger.

You often see passive styluses with:

• Large rubber tips
• Mesh tips
• Universal “works with any touchscreen” marketing

They are useful when you want:

• Cleaner taps on a phone or tablet
• Better control than using a finger
• A low-cost stylus for casual use

But they do not give you the hardware-level pen features that artists usually expect.

Active Stylus vs Passive Stylus

Feature	Active Stylus	Passive Stylus
How it works	Communicates with a digitizer in the device	Mimics finger touch on a capacitive screen
Pressure sensitivity	Yes, on supported hardware	No
Hover support	Often yes, on supported hardware	No
Tilt support	Often yes, on supported hardware	No
Palm rejection	Usually much better	Limited or none
Accuracy	Higher	Lower
Best use case	Drawing, handwriting, editing, precise control	Basic taps, scrolling, casual navigation

Why Hover Matters So Much

Hover support is one of the biggest reasons people notice a difference between active and passive stylus hardware.

With hover, the screen can detect the pen before it touches the display. Depending on the device and app, that can help you:

• Preview cursor position before you draw
• Check brush placement more accurately
• Reduce mistakes while writing
• Interact with some pen-specific shortcuts or hover actions

This is especially useful in drawing apps, where even a small positioning error can affect line quality.

By comparison, a passive stylus only starts working once it physically touches the screen. There is no pre-contact pen tracking, so the experience feels closer to regular touch input.

Pressure Sensitivity and Tilt

If your goal is digital art, pressure sensitivity is usually the feature that matters most.

An active stylus can let your software respond differently based on how hard you press, which is important for:

• Line weight
• Brush opacity
• Natural sketching
• Cleaner handwriting

Some active stylus devices also support tilt, which can improve shading or make brush tools feel more natural.

A passive stylus does not provide true pen pressure on normal capacitive touchscreen workflows. If line thickness changes at all, it is usually because of software smoothing or speed-based effects, not real pressure data from the pen.

Important Detail: Not Every Active Stylus Has Every Feature

This is where many users get confused.

An active stylus does not automatically guarantee:

• Hover
• Tilt
• Button support
• The same feature set across every app

Those features depend on the full combination of:

• The pen
• The device
• The operating system
• The app you are using

For example, a pen can still be an active stylus even if one specific device or app does not expose hover or tilt.

How to Tell If Your Device Uses an Active Stylus

If you are not sure what kind of pen your device supports, check these signs:

1. Look at the official device specs

Search for terms like:

• S Pen
• Apple Pencil
• Active Pen
• Digitizer
• M-Pencil

2. Test for hover

Hold the pen slightly above the screen without touching it.

• If a cursor or pointer appears, your device supports hover.
• If nothing happens until contact, it is probably a passive stylus workflow or an active stylus without exposed hover behavior.

3. Test pressure in a drawing app

Draw light and heavy strokes in a pressure-aware app.

• If the stroke reacts to pressure, you are using proper pen input.
• If every line looks the same, you are probably in a basic touch-input path.

Which Stylus Type Is Better for VirtualTablet?

If you want to use VirtualTablet or VirtualTablet: Bluetooth as a real drawing tablet workflow, an active stylus is the better choice.

That is the setup most likely to give you:

• Pressure-sensitive drawing
• Better cursor precision
• More natural pen control
• A workflow closer to a dedicated graphics tablet

That said, passive stylus input is still supported for basic use. In practical terms, you can still use a capacitive stylus or finger input with the app for simple touch-based interaction.

The limitation is that passive stylus workflows do not provide the advanced pen features that matter most for drawing tablet use:

• No true pressure sensitivity
• No hover support
• No tilt support
• Less precise pen behavior overall

So if your goal is casual tapping, simple annotation, or basic input, a passive stylus can still work. If your goal is serious drawing or handwriting quality in VirtualTablet, an active stylus is still the right recommendation.

Useful guides:

• Check supported devices for VirtualTablet
• Check supported devices for VirtualTablet: Bluetooth
• Turn your tablet into a drawing tablet
• Compare VirtualTablet and VirtualTablet: Bluetooth

FAQ

Is Apple Pencil active or passive?

Apple Pencil is an active stylus. Advanced features such as tilt and other pen behaviors depend on the compatible Apple device and app.

Is Samsung S Pen active or passive?

S Pen is an active stylus. On compatible Samsung devices, it can also support features such as hover and pressure input.

Can a passive stylus hover?

No. A passive stylus does not provide true hover detection because it works like ordinary capacitive touch and needs screen contact.

Can a passive stylus have pressure sensitivity?

Not in the normal sense used for drawing tablets. A passive capacitive stylus does not send true pen pressure data to the device.

Do all active styluses support hover?

No. Many active stylus systems support more advanced features than passive styluses, but the exact feature set depends on the pen, device, operating system, and app.

Final Recommendation

Choose an active stylus if you want:

• Drawing
• Pressure sensitivity
• Better note-taking accuracy
• More precise control in desktop apps

Choose a passive stylus only if you want:

• Simple taps and scrolling
• A cheaper general-purpose stylus
• Occasional touchscreen navigation

If your goal is to turn an existing mobile device into a serious drawing tablet, start by checking whether your phone or tablet supports a real active stylus.
