VirtualTablet
User Guide
Monitor Selection

Selecting Specific Monitor in Multi-Monitor Environment

Windows Users

For Windows users with multiple monitors, by default, stylus pen input is only sent to the first monitor without any additional configuration. To direct input to your desired monitor, follow these configuration steps: (Note: While it’s possible to select a specific monitor for input, it’s not possible to span input across multiple monitors.)

Accessing Tablet PC Settings Menu

Method 1: Using Control Panel

Find and access the settings menu through Control Panel.

  1. Open Control Panel
  2. Change View by to Large icons in the top right corner
  3. Find and open Tablet PC Settings

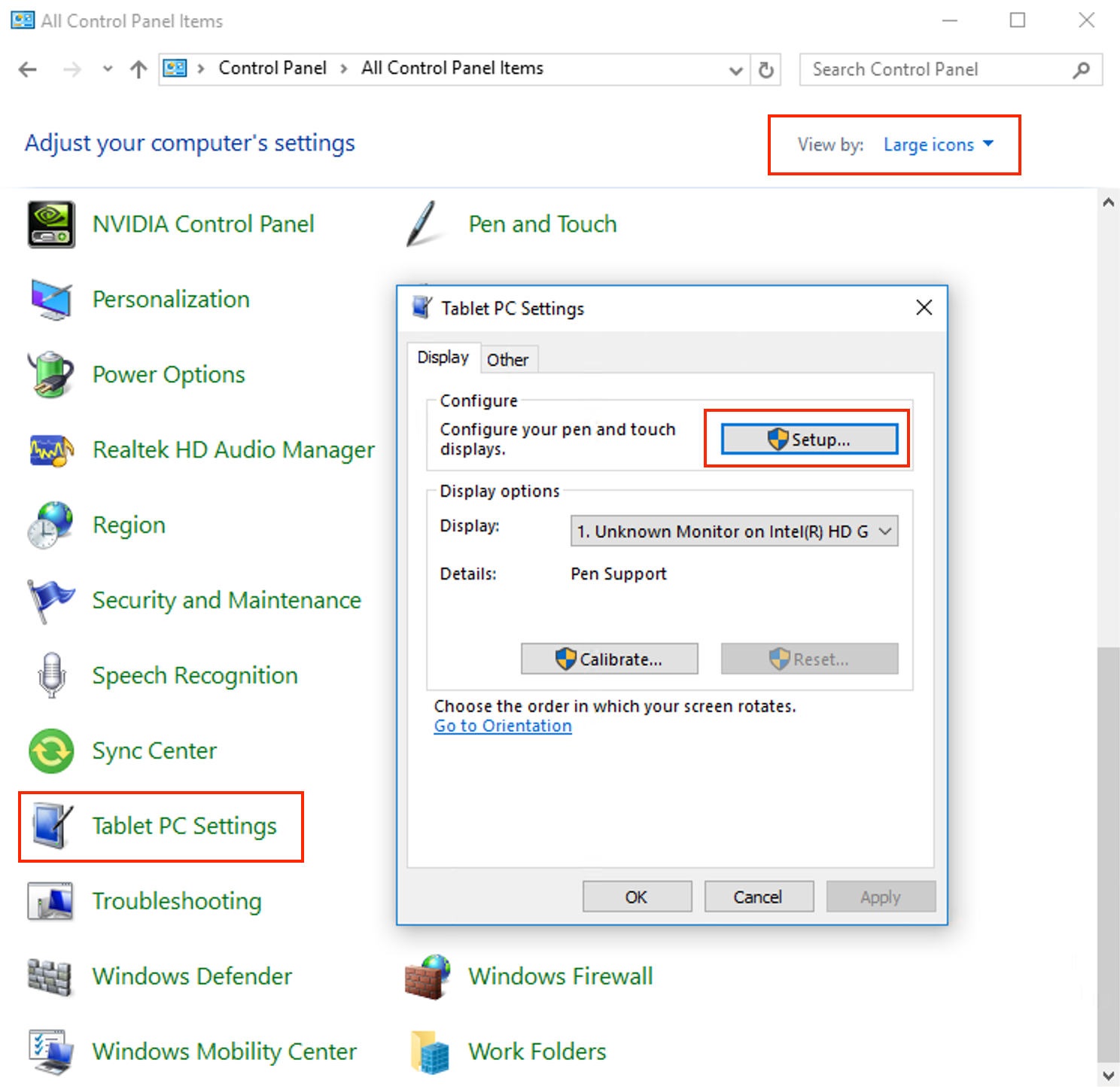

Tablet PC Settings location in Control Panel

️‼️
When VirtualTablet Server is properly installed, stylus pen-related drivers are installed, which automatically adds the Tablet PC Settings menu to Control Panel. If you cannot find this menu in Control Panel after a successful installation, please restart your computer and check again.

Method 2: Creating Shortcut

Create a shortcut to directly access the settings menu without searching through Control Panel.

  1. Go to Desktop
  2. Right-click on an empty area of the desktop and select New > Shortcut from the menu
  3. Paste the following into Item location:
    %windir%\explorer.exe shell:::{80F3F1D5-FECA-45F3-BC32-752C152E456E}
  4. Name the shortcut Tablet PC Settings
  5. Open the created shortcut

Selecting Monitor

Before selecting a monitor, first run both VirtualTablet app and VirtualTablet Server, complete the connection, and verify that stylus pen input is being transmitted properly.

Then, click the Setup button in the Configuration section of the Tablet PC Settings window, and the following message will appear on your monitor:

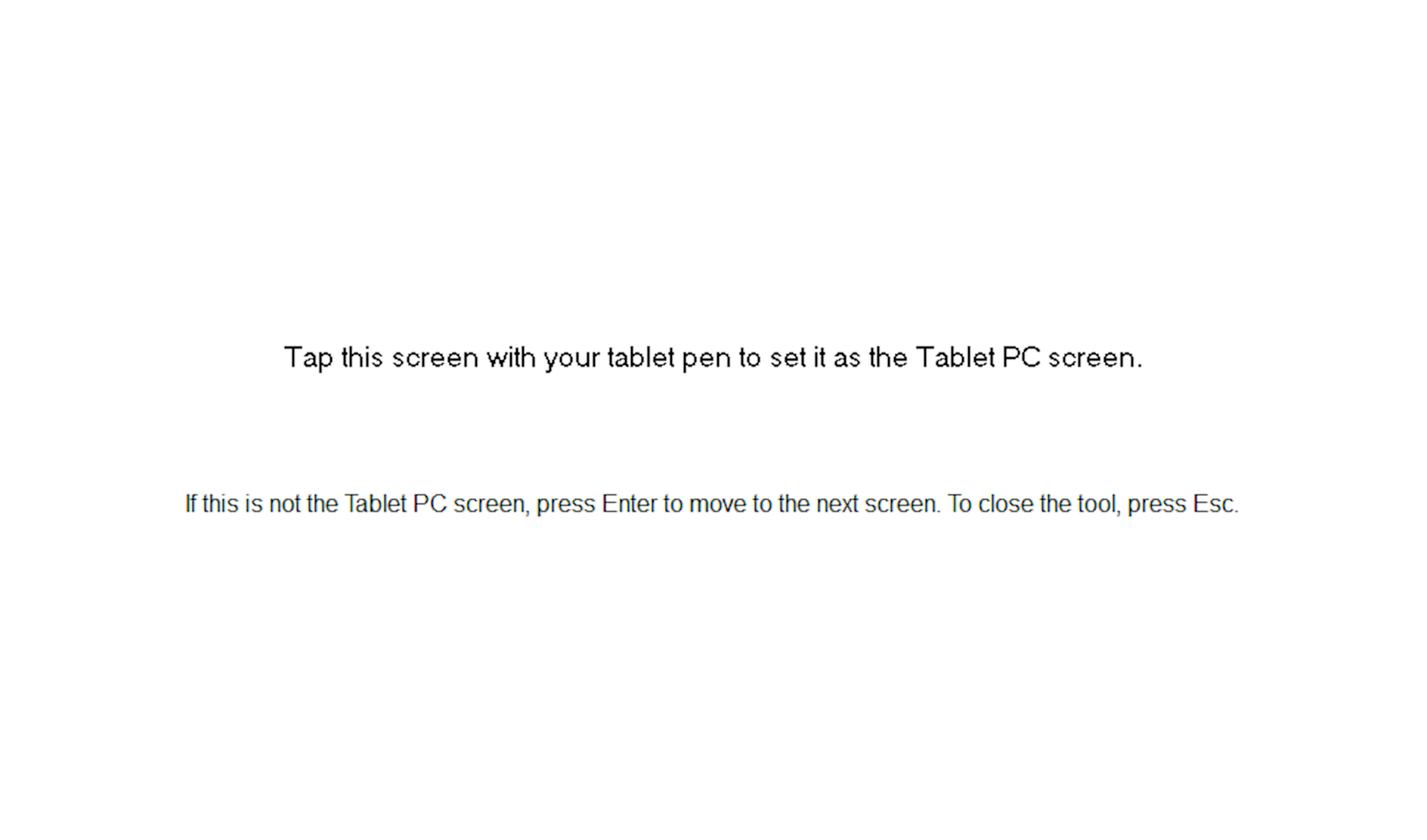

Monitor selection message

To direct pen input to the monitor displaying this message, touch the screen with the pen in the VirtualTablet app. If you want to select a different monitor than the one showing the message, press Enter to cycle through monitors until the message appears on your desired monitor, then touch the screen with the pen in the VirtualTablet app.

Once configured using the above method, you can verify that pen input is being directed to your selected monitor.

Mac Users

Unlike Windows users, Mac users don’t need to change operating system settings. Simply select your desired monitor from the menu displayed within the VirtualTablet Server application.
